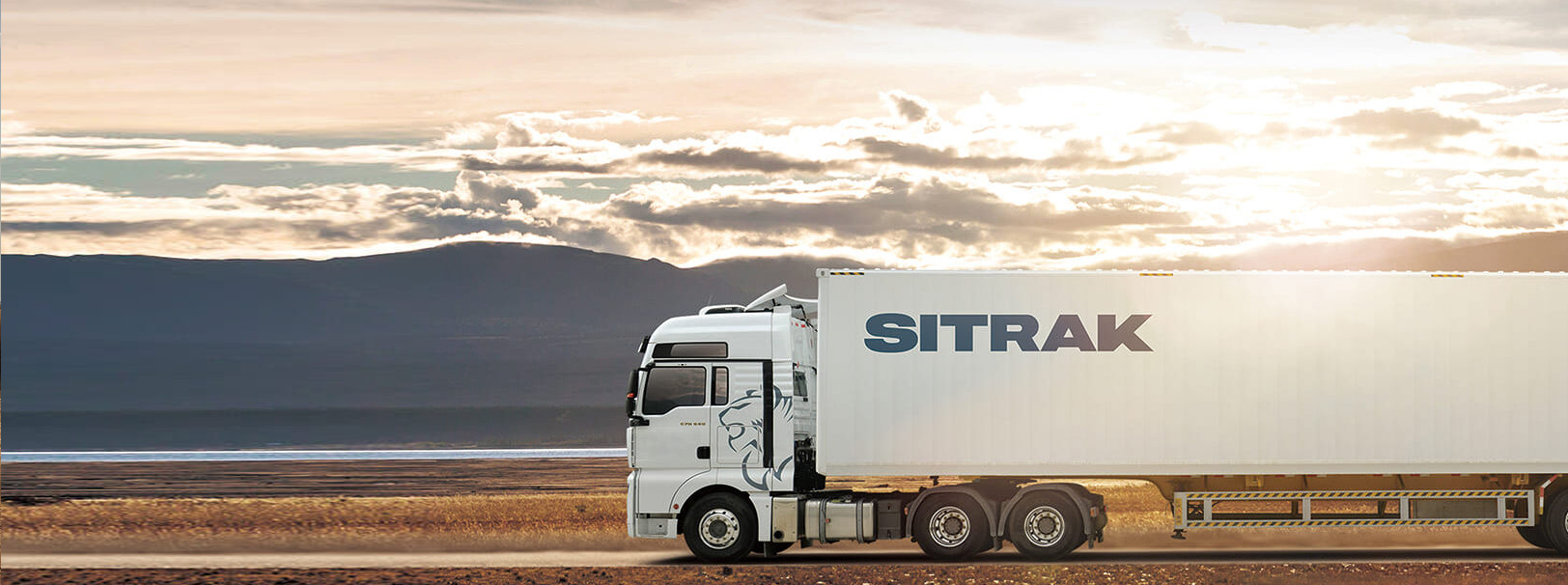

Sitrak

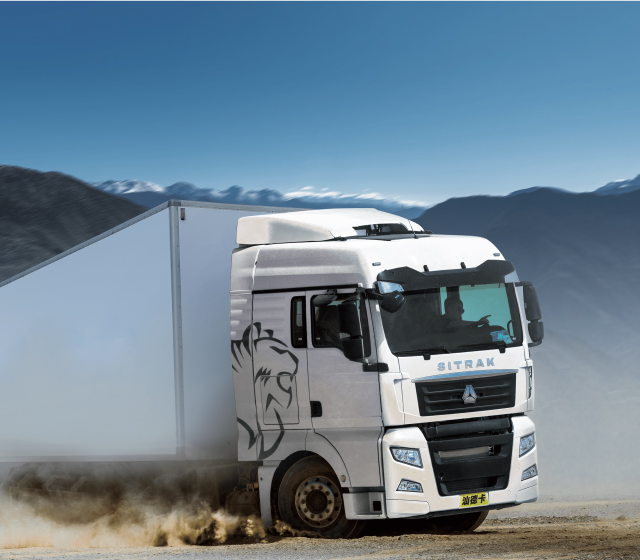

SITRAK is a high-end brand of SINOTRUK, a collaboration between SINOTRUK and German company. It consists of purely European technique and possesses the most advanced truck technology and excellent product quality.

STYLISHNESS AND TECHNOLOGY GO TOGETHER cover

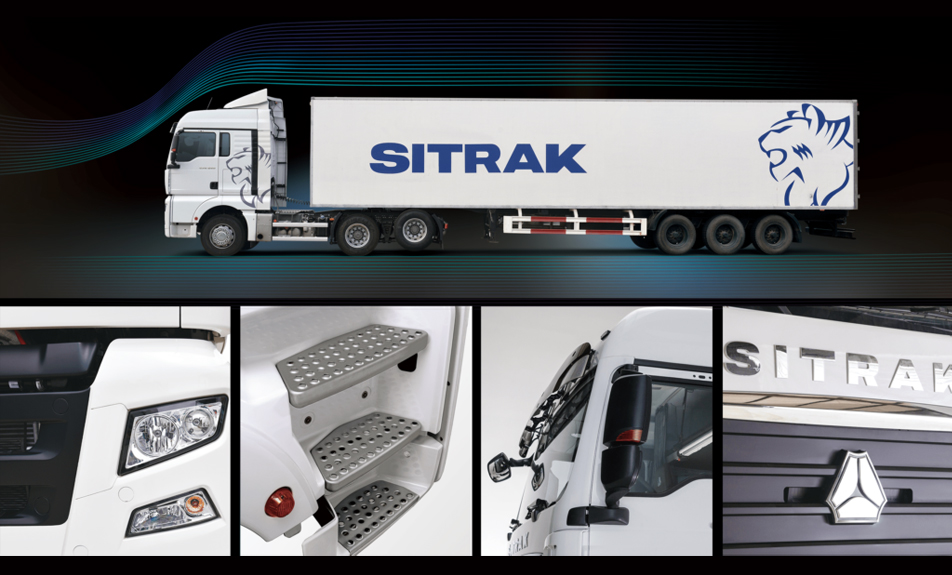

STYLISHNESS AND TECHNOLOGY GO TOGETHER
SITRAK unveils a stylish appearance and exudes an elegant aura. Hints of advanced technology are evident in its sleek, low-wind-resistant vehicle body, expansive field of vision, and intelligent lighting combinations.
Exceptional Seating and Sleeping Comfort cover

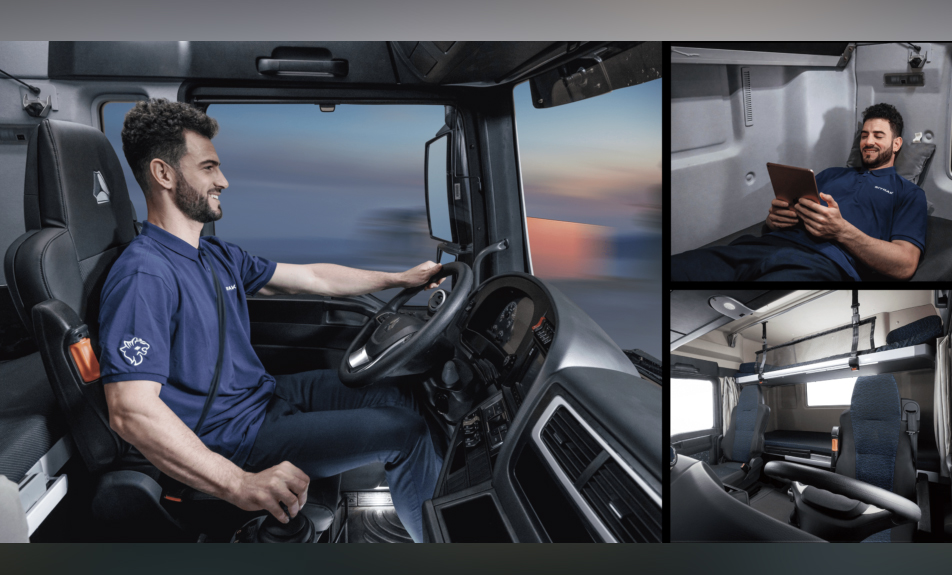

Exceptional Seating and Sleeping Comfort
Our luxurious air-suspended seat, complete with a waist cushion, offers unmatched comfort. Drivers can easily adjust the airbag's inflation and deflation with a simple button. Plus, both-sided armrests enhance driver comfort further. For those chilly winter days, we offer an optional heating function for the driver's seat, providing rapid warmth. The 2-meter long, 0.8-meter wide berth provides a stable bed-frame for a peaceful night's sleep. Safety measures include nylon mesh protection for the upper berth and a protective bar for the lower berth. Additionally, a built-in reading lamp adds convenience for reading or relaxation.
Adaptable Air Conditioning for Diverse Temperature Needs cover

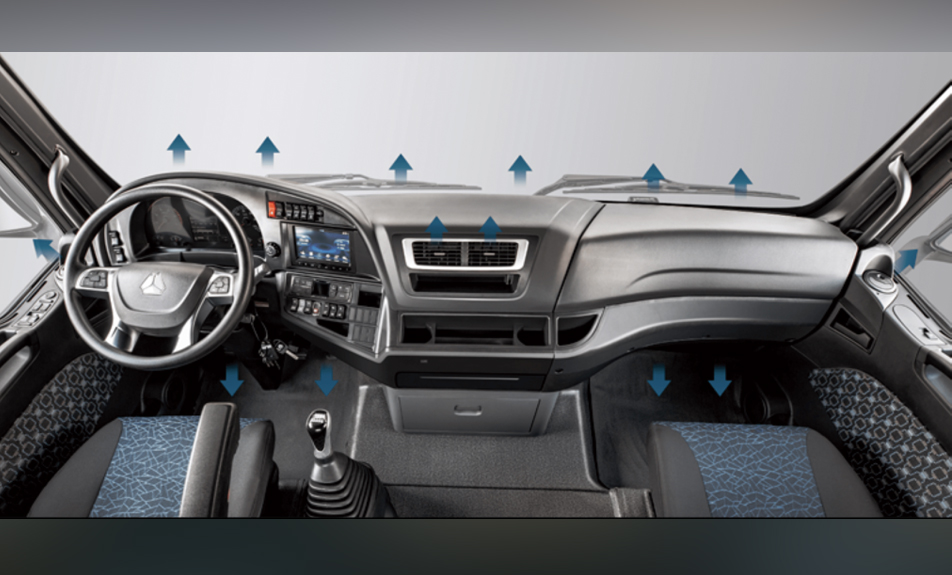

Adaptable Air Conditioning for Diverse Temperature Needs
Standardly equipped with A/C, with the cooling and heating capacity of more than 5.0kW and 7.0kW respectively. The temperature inside the cab is effectively adjusted relying on the smart design of air duct and outlets. Parking cooler is optional. Fuel-operated heater is optional.
Intuitive and User-Friendly Controls cover

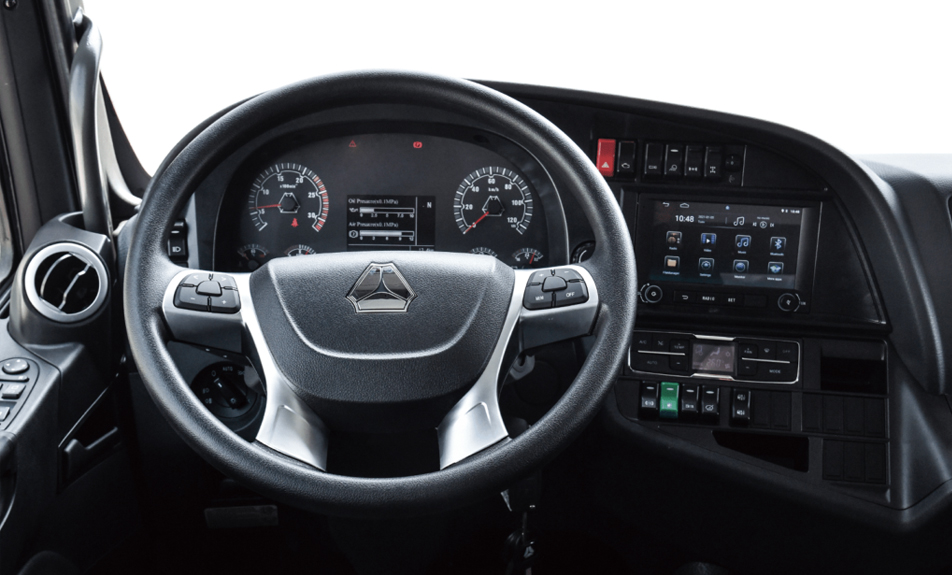

Intuitive and User-Friendly Controls
Our clear and intuitive layout places functionally-related buttons and rotary switches together for direct, efficient, and error-free operation. The multi-function steering wheel ensures ease of use, enhancing both driving safety and comfort.
Elegant yet practical cover

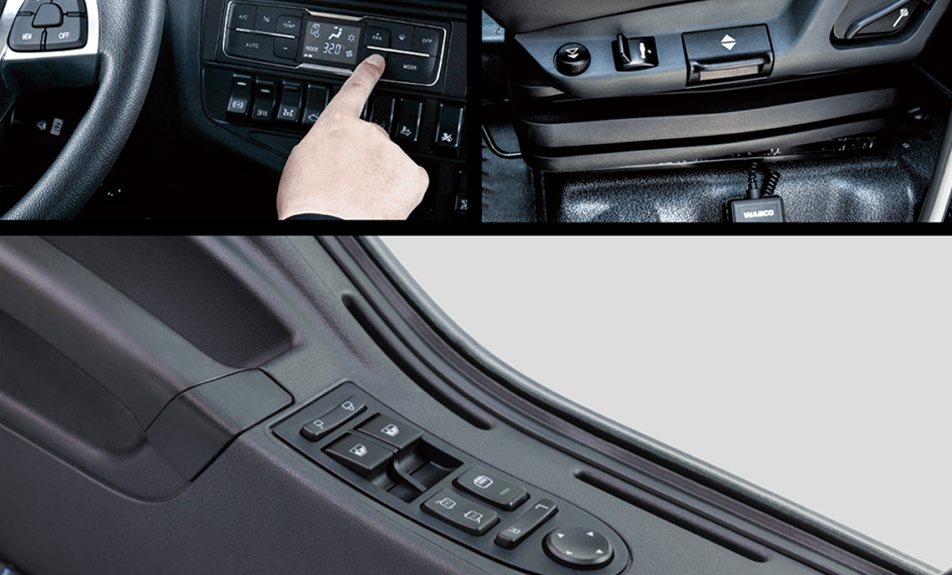

Elegant yet practical
Even the design of doors teems with wisdom. Control buttons such as door lock, widow regulator, rearview mirror adjustment key and electric heating control key are located exactly where you need them.

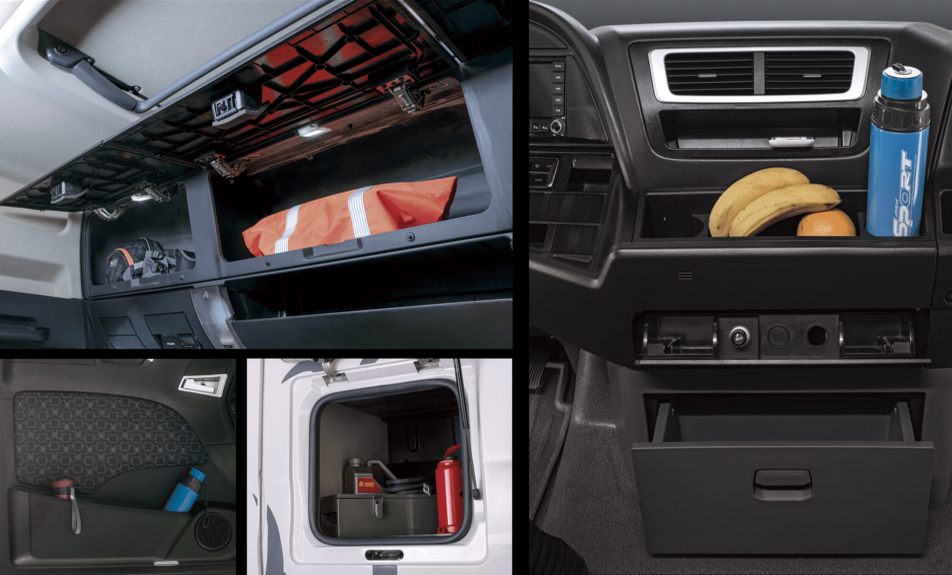

Storage Space cover
Storage Space
There are several storage boxes with the capacity over 200L, where clothing, luggage and large-size objects can be contained. The lower berth is reversible for larger interior space. Tips: vehicle-mounted tool can be placed on the left and right two boxes.
The combination of MC series engine, smart transmission and high-efficiency driving axles, enable you to raise economic yields and reduce cost while meet your more power needs.
MORE POWER
  • Tractor axle configurations
    Thanks to the rigorous theory verification and complex road tests, the powertrain is well chosen, thus makes full use of it.
  • Higher efficiency
    Reasonable matching and advanced technology support raise the overall operation.
  • Longer maintenance interval
    Longer oil change interval guarantee higher attendance. Engine, transmission and axle oil change interval is as long as 100,000 kilometers.

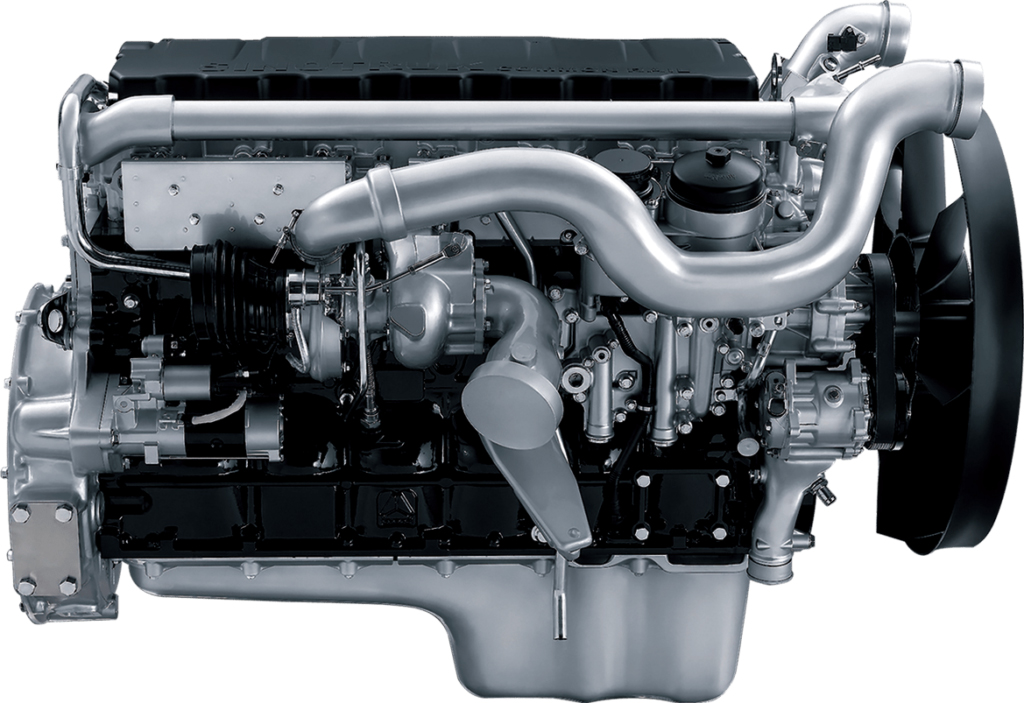

B10 LIFE EXCEEDS 1,500,000 KM

Higher Strength

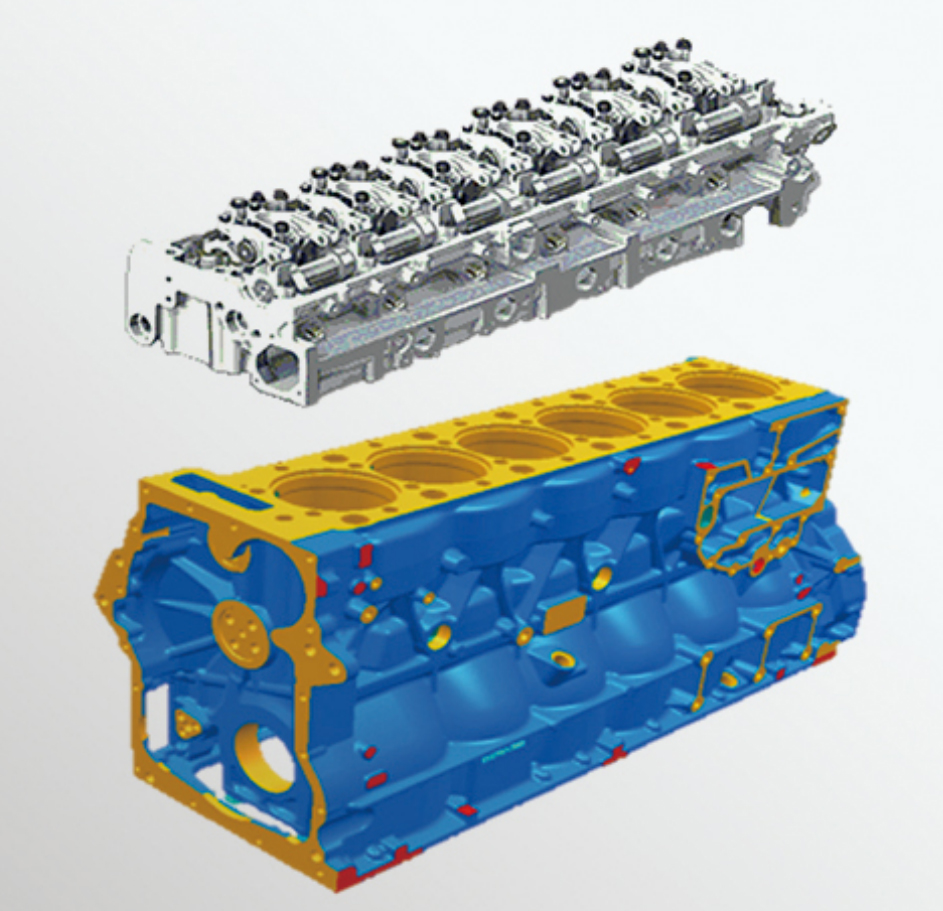

The Cylinder Block adopts vermicular cast iron which has higher rigidity and strength, thinner wall thickness and lower weight. Compared with gray cast iron, the vermicular cast iron can improve the extension strength by 75%, elasticity modulus by 40% and fatigue strength by 100%.

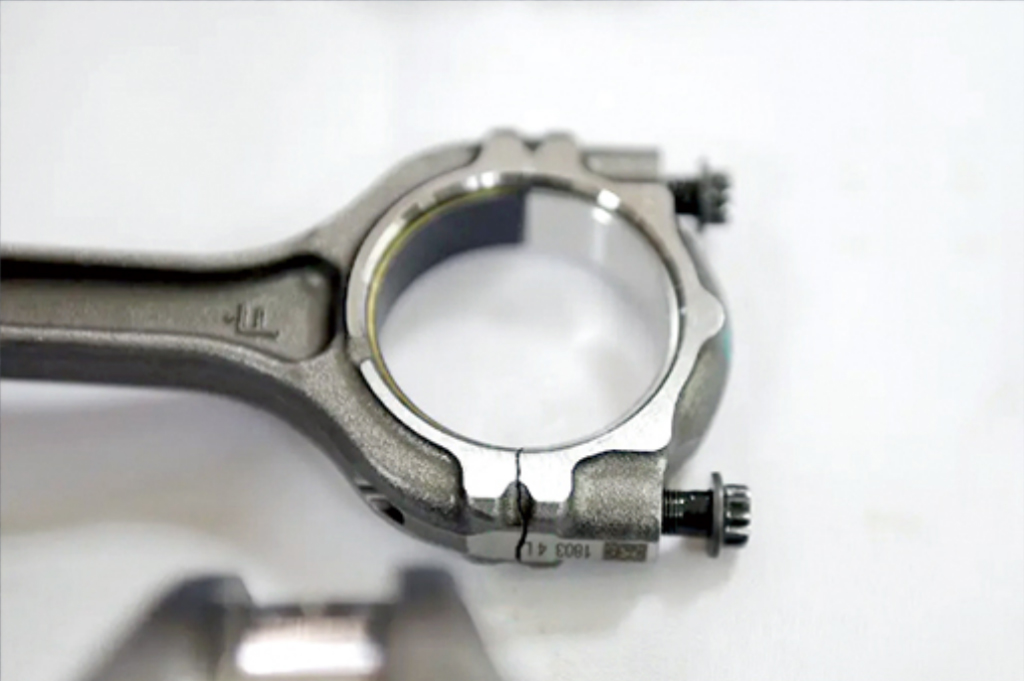

Higher Accuracy
Both the main bearing cap of the crankshaft and the bigger end of the con-rod adopt world advanced cracking technology, which produces extremely high lateral supporting effect and guarantees the precise and strong positioning. This technology remarkably improves the carrying capacity and reduces the wear of the bearing.

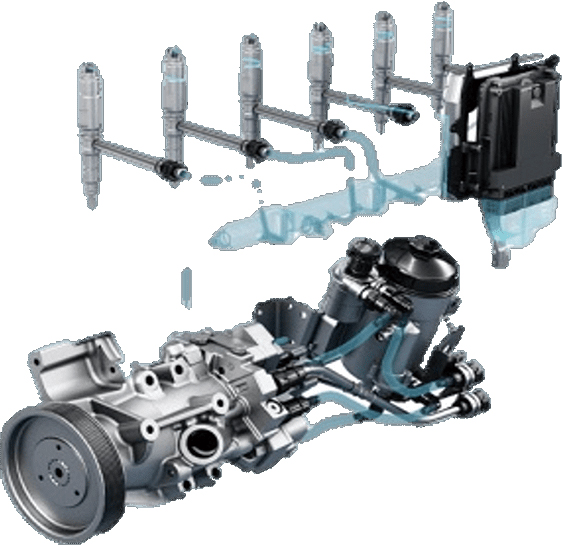

Higher Injection Pressure And Accuracy
The electronic control unit (ECU) precisely control the fuel injection process according to the running status of the engine the maximum injection pressure can reach 1600bar, which makes the atomization effect of the fuel injection better, the engine more powerful and the fuel consumption much lower. High outbreak and combustion pressure reduce the sool content of the engine oil.

TRANSMISSION
zf manual/sinotruk amt gearbox
ENGINE
ZF transmission adopts synchronizer for shifting and is equipped with servo shift assisted mechanism.which reduces the shifting force and guarantees the quickness and smoothness during gear shift change. The ZF transmission adopts lean gear grinding technology, which reduces the noise while improves the transmission efficiency. Besides, the aluminum transmission housing reduces the weight and increases the load.
ENGINE
HW AMT transmission is equipped with TCU, which guarantees accurate shifting by detecting accelerator pedal position, load, braking status, engine's torque and speed, current vehicle speed, etc., so that the vehicle can always works at the best speed.
C7H 6X4 PRIME MOVER
Item Specification
External Dimensions
Length (mm) 6945
Width (mm) 2496
Height (mm) 3230
Track (mm)
Front (mm) 2041
Rear (mm) 1830
Min. Ground Clearance (mm) 257
Approach Angle (°) 15
Departure Angle (°) 46
Features
Engine MC13.54-50 from Germany Brand D26
Transmission ZF 12 speed AMT with Retarder
Axles Germany Brand tech front/Rear, disc brake; single reduction rear Axle
Frame/Cab Germany Brand Tech TGA
Weight Reduction Alloy rim/air tank/fuel tank/Air suspension
Active Safety Functions EBS+ESC+AEBS+ACC+HSA+LDWS+FCWS
Driver Safety Airbag
Cabin Comfort 4-point air suspension/ Electric windows/ Electric Mirrors/ Central lock with remote control
Steering and Display ZF steering pump / Continental Color display
Management System Fleet Management system
Camera Systems Tetragonal camera/ 360-degree loop vision camera
Seat ISRI Ventilated heated seat with armrests
Refrigerator Cab refrigerator (30L)
Air Conditioner Parking air conditioner
Sleeper Switch
Headlights LED automatic sensing
Fuel Filter Long acting crude fuel filter
Brake Disc Alarm Brake disc wear alarm
Cast Turntable 50#/90#
Inverter 220V-1000W
Battery 240Ah
Fuel Tanks 600+370L Fuel tank/ 90L adblue tank
C7H 6X4 TIPPER
Item Specification
External Dimensions
Length (mm) 7975
Width (mm) 2490
Height (mm) 3210
Track (mm)
Front (mm) 3600
Rear (mm) 1400
Min. Ground Clearance (mm) 257
Approach Angle (°) 15
Departure Angle (°) 46
Features
Engine MC13.54-50 from Germany Brand D26
Transmission ZF 12 speed AMT with Retarder
Axles Germany Brand tech front/Rear, disc brake; single reduction rear axle
Frame/Cab Germany Brand Tech TGA
Weight Reduction Alloy rim/air tank/fuel tank/Air suspension
Cabin Comfort 4-point air suspension cabin/ Electric windows/ Electric Mirrors/ Central lock with remote control
Steering and Display ZF steering pump / Continental Color display
Management System Fleet Management system
Camera Systems Tetragonal camera/ 360-degree loop vision camera
Seat ISRI Ventilated heated seat with armrests
Refrigerator Cab refrigerator (30L)
Air Conditioner Parking air conditioner
Headlights LED automatic sensing
Fuel Filter Long acting crude fuel filter
Brake Disc Alarm Brake disc wear alarm
Inverter 220V-1000W
Battery 240Ah
Fuel Tanks 600L Fuel tank/ 90L adblue tank
C7H 8X4 TIPPER
Item Specification
External Dimensions
Length (mm) 9217
Width (mm) 2492
Height (mm) 3210
Track (mm)
Front (mm) 1950
Rear (mm) 1400
Min. Ground Clearance (mm) 257
Approach Angle (°) 15
Departure Angle (°) 46
Features
Engine MC13.54-50 Engine from Germany Brand D26
Transmission ZF 12 speed AMT with Retarder
Axles Germany Brand tech front/Rear axles, disc brake; single reduction rear axle
Cab/Trapezium frame Germany Brand Tech Cab/Trapezium frame
Weight Reduction Alloy rim/air tank/fuel tank/Air suspension to reduce tare weight
Cabin Comfort 4-point air suspension cabin/Electric windows/Electric Mirrors/Central lock with remote control
Steering and Display ZF steering pump /Continental Color display
Management System Fleet Management system
Camera Systems Tetragonal camera/360-degree loop vision camera
Seat ISRI Ventilated heated seat with armrests
Refrigerator Cab refrigerator (30L)
Air Conditioner Parking air conditioner
Headlights LED automatic sensing headlights
Fuel Filter Long acting crude fuel filter
Brake Disc Alarm Brake disc wear alarm
Inverter 220V-1000W
Battery 240Ah
Fuel Tanks 600L Fuel tank/ 90L adblue tank
