HOWO-N SERIES

HOWO-N is a cost-efiective heawy-duty truck product launched by SINOTRUK, which adopts standardized, modular and lightweight design concepts and has good comfort reliability and economy.

MAKE A CAB LIKE A HOME

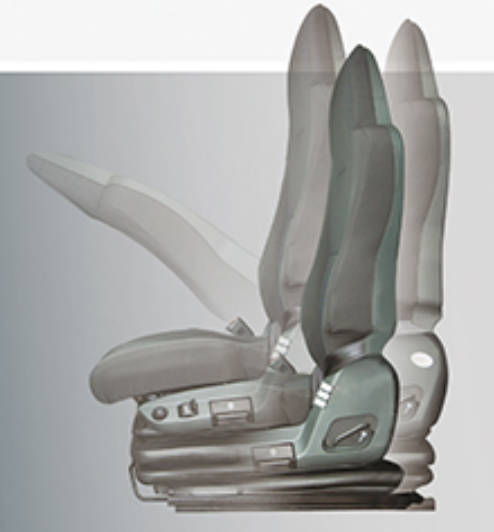

The airtag seat with waist cushion helps the driver to drive comforably; the ergonomic integrated desian of the safety-belt and the seat avoid driver's sufiocation caused by emergency braking during driving on highway.

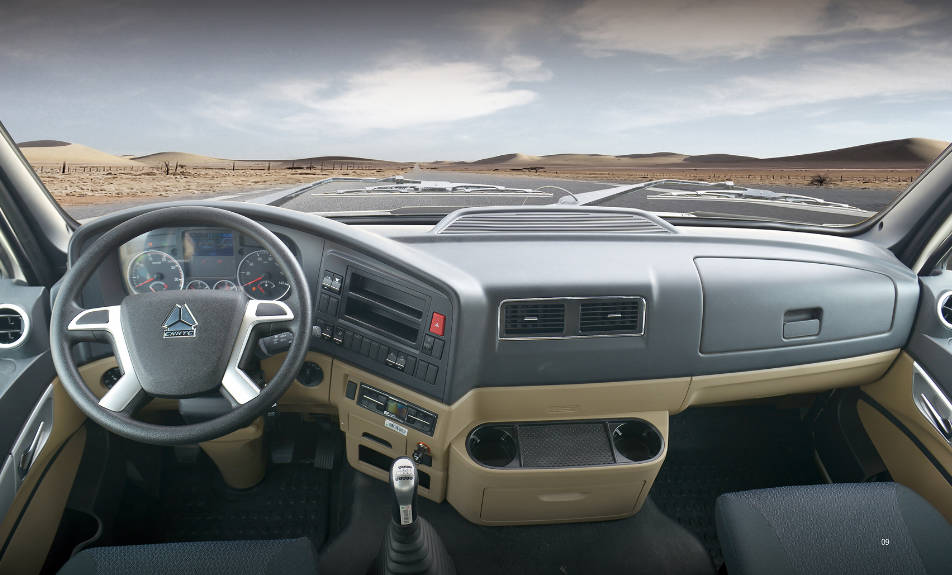

DASHBOARD

Long-lifemechanical instrument is stable under high iemperature, with a LED screen bringingall information of the vehicle into sight (such as vehicle's speed, Engine rotation speed, fuel consumption, water temperature and vehicle's air pressure,etc.) Simple buttons fufil basic operations requiremenis, with 24V USB socket supporis extrasmall fan and mobile charger.

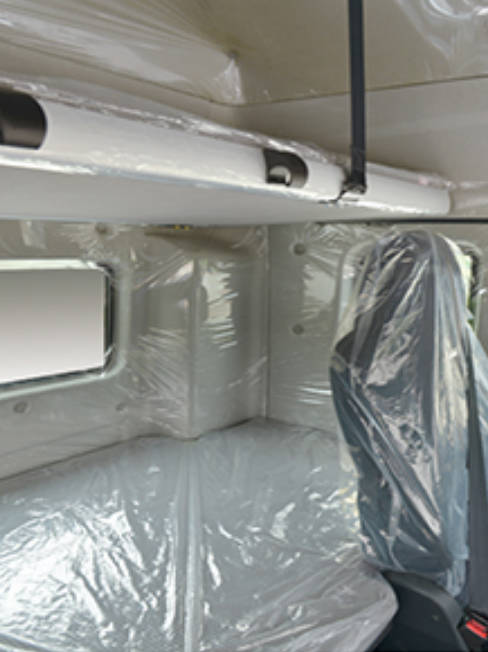

SLEEPING BUNK

Super-large space :The 900mm-wide lowersleeping bunk provides ultimate comfort to the driver, while the 600mm-wide upper sleeping bunk which the Asian drivers' favorite also could keep drivers belongings.

RELIABLE STRONG AND EFFICIENT

POWERTRAIN

Powertrain ismorereliable

All technolog es are 100%s slem trom Germany, the whole powerirain has gone through virorous theory veritiaticn and various complicaled fieid validation. Every assembly in the powerirain huly plays its superior performanca, (ruly ranizing reasonabie realch and the hastuse ol every Barts
Higher transmission efficiency

Super-various combination of Horsepower and Speed Ratio, using in all working conditions. Precise and reasonable matching, advanced technology and processing technigue make the transmission efticiency better for the whole powertrain, saving the fuel consumption (costs)
Longer maintenance interval mileage

The Engine oil change interval reaches 40,000km, The Gearbox oil & Rear axle oil change inierval reaches 80,000km. Co-using SINOTRUK premium filters get a low operating cost. Also the easily-gain services parts on the maret, make senvices everywhere

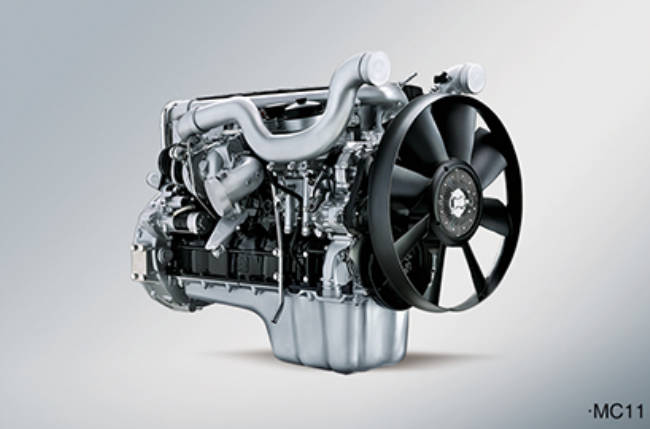

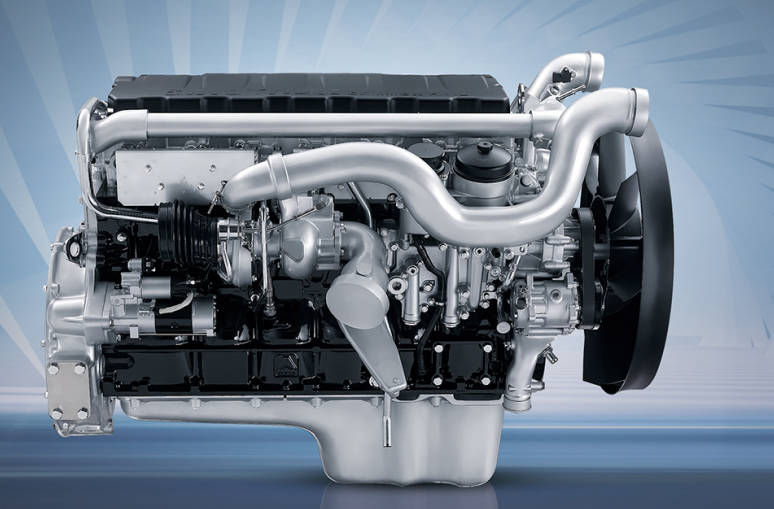

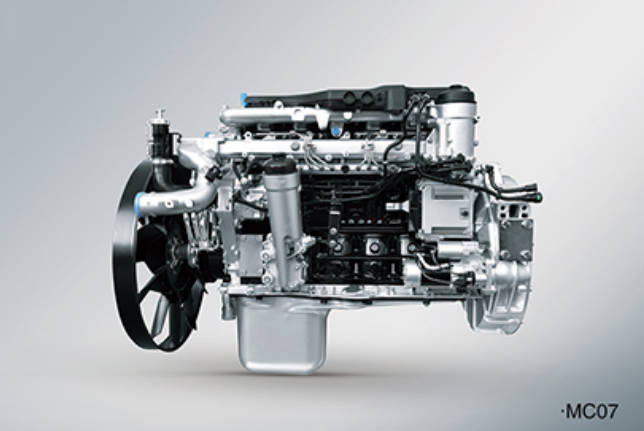

THE MC-SERIES ENGINE EURO III/EURO V

Wide range of economic rotation speed with high torgue, low rated speed with strong power.

The engines adopt BOSCH(German) High pressure common railinjection system. The power of MC-SERIES engines ranges from 210 to 480HP and the torgue ranges from 830 to 2300Nm;

Matching up with from urban-services vehicles to heavy-duly tractors.

Engine Main Parameters

Item	MODEL
Item	MC05.21-30	MC07.24-30	MC07.28-30	MC07.34-30	MC11.39-30	MC11.43-30	MC13.48-30
Cylinder NO.	4	6			6		6
Bore(mm)	108	108			120		126
Stroke(mm)	125	125			155		166
Displacement(L)	4.58	6.871			10.518		12.419
Compression ratio	16.5:1	16.5:1			19:1		19:1
Rated Power(Kw)	151	176	206	248	287	316	353
Rated Speed(rpm)	2400	2300	1900	1900
Max.Torque(Nm)	830	925	1100	1250	1900	2100	2300
[email protected]	1400	1200-1800			1000-1400		1050-1400

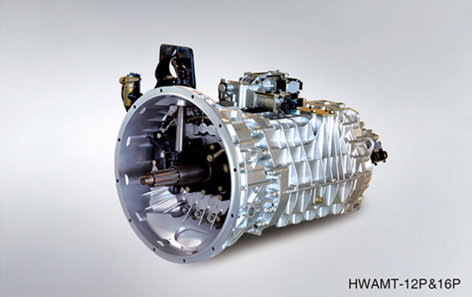

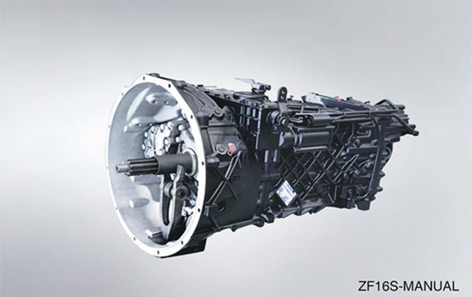

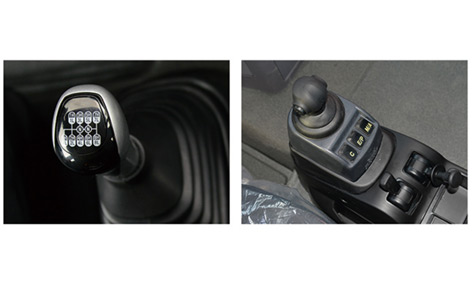

TRANSMISSION

zf manual/sinotruk amt gearbox

Equipping wilh ZF Manual SINOTRUK AMT gearbox. According to the working conditions, we'll recommend the most suitable gear box for your truck.

ZF gearbox, the best gearbox on the world, also the best matching with MC series engine,80,000km oil changing interval with global warranty, never let you down.

HW-series gearboxes manufactured by SINOTRUK, after 57 years for researching and developing, more than 1 million HW-gearbox were sold all over the world.

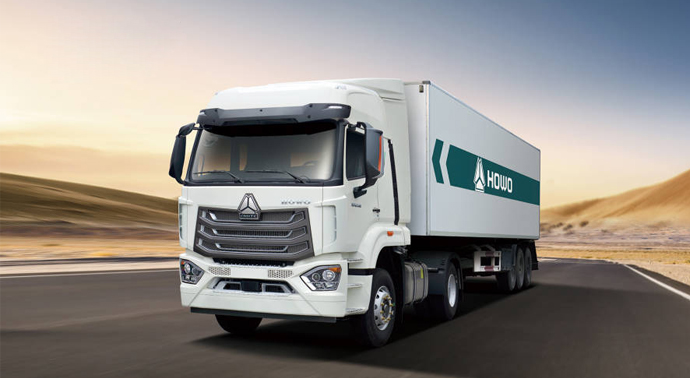

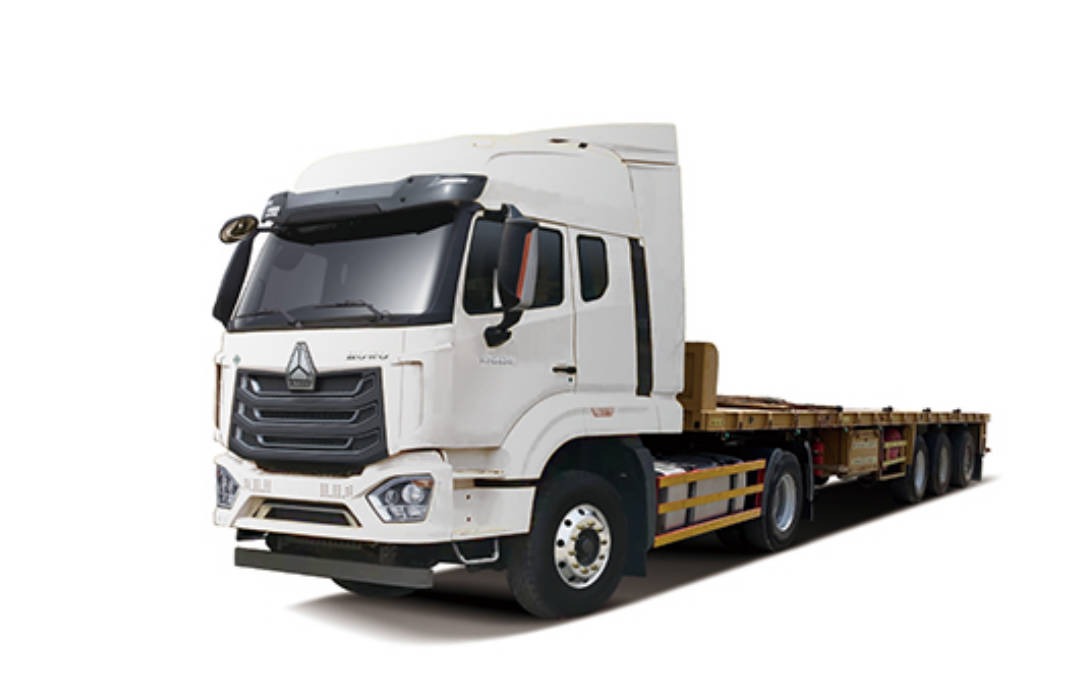

HOWO-N7 4X2 TRACTOR

Model		HOWO-N7 Logistics Tractor	HOWO-N7 Heavy Duty Tractor
Drive type		4×2	4×2
Kerb Weight(kg)		6640	6800
GCW(kg)		50000	55000
Dimensions LxWxH(mm)		6175x2500x3790	6475x2500x3120
Wheelbase(mm)		3600 or 3900	3900
Cabin	Model	H78L(with 2 bunks)	H77L(with 1 bunk)
Engine	Model	MC11.43-30	MC11.43-30
	Displacement(L)	10.518	10.518
	Horse Power(Hp)	430	430
	Maximum torque (N·m/rpm)	2100N·m/1000-1400rpm	2100N·m/1000-1400rpm
	Rated power(kW/rpm)	316kW/1900rpm	316kW/1900rpm
Transmission	Model	AMT HW25712XACL(Option: Manual ZF16S2230 TO)	AMT HW25712XACL+PTO (Option: Manual ZF16S2230 TO+PTO)
Transmission	Gear position	12 forwards & 2 reverses (16 forwards & 2 reverses)	12 forwards & 2 reverses (16 forwards & 2 reverses)
Front Axle	Load capacity(kg)	7000	9000
Rear Axle	Load capacity(kg)	13000	16000
Rear Axle	Ratio	4.11 or 3.70	3.63
Chassis	Thinkness(mm)	8	8+5+8(partial)
Suspension	Type	Leaf spring(Option: Rear air suspension)	Leaf springs
Fifth Wheel	Size	2inch	2inch
Fuel tank capacity	Volume(L)	600(+400)	600(+400)
Tire	Model	Front 385/65R22.5; Rear 315/80R22.5	Front 385/65R22.5; Rear 315/80R22.5

HOWO-N7 6X4 TRACTOR

Model		HOWO-N7 Heavy duty Tractor
Drive type		6×4
Kerb Weight(kg)		8800
GCW(kg)		70000
Dimensions LxWxH(mm)		7050x2500x3120
Wheelbase(mm)		3400+1350
Cabin	Model	H77L(with 1 bunk)
Engine	Model	MC13.48-30
	Displacement(L)	12.419
	Horse Power(Hp)	480
	Maximum torque (N·m/rpm)	2300N·m/1050-1400rpm
	Rated power(kW/rpm)	353kW/1900rpm
Transmission	Model	ZF16S2530TO+PTO
	Gear position	16 forwards & 2 reverses
	Load capacity(kg)	9000
	Load capacity(kg)	2×16000
	Ratio	4.77
Chassis	Thinkness(mm)	8+8
Suspension	Type	Leaf springs
Fifth Wheel	Model	3.5inch
Fuel tank capacity	Volume(L)	600
Tire	Model	12.00R24

HOWO-N5 4X2 Chassis

Model		HOWO-N5 Cargo Chassis	HOWO-N5 Cargo Chassis	HOWO-N5 Cargo Chassis
Drive type		4×2	4×2	4×2
Kerb Weight(kg)		6300	6300	6300
GVW(kg)		17000	18000	18000
Dimensions LxWxH(mm)		8350x2500x3080	7950x2500x3100	8350x2500x3100
	Wheelbase	4700	4500	4700-5800
Cabin	Model	H77L(3 seats)	H77L(Option:3 seats)	H77L(Option:3 seats)
Engine	Model	MC05.21-30	MC07.24-30	MC07.28-30 Option:MC07.34-30
	Displacement(L)	4.58	6.87	6.87
	Horse Power(Hp)	210	240	280
	Maximum torque (N·m/rpm)	830N·m/1400rpm	925N·m/1200-1500rpm	1100N·m/1200-1500rpm
	Rated power(kW/rpm)	151kW/2400rpm	176kW/2300rpm	206kW/2300rpm
Transmission	Model	HW95508STC+HW45ZC	HW95508STC+PTO	HW13709XST+PTO
Transmission	Gear position	8 forwards & 1 reverse	8 forwards & 1 reverse	9 forwards & 1 reverse
Front Axle	Load capacity(kg)	5500	7000	7000
Rear Axle	Load capacity(kg)	11000	11000	13000
Rear Axle	Ratio	4.33	4.11	4.11
Chassis	Thinkness(mm)	7+4	7(7+4)	7(7+4)
Suspension	Type	Leaf springs	Leaf springs	Leaf springs
Fuel tank capacity	Volume(L)	200L(300L)	200L(300L)	200L(300L)
Tire	Model	10.00R20	295/80R22.5	315/80R22.5

HOWO-N7 6X4 Chassis

Model		H0W0-N7 Heavy/Sanitation Truck Chassis	H0W0-N7 Strengthened/Heavy duty Chassis	H0W0-N7 16-18m3 Dumper Truck
Drive type		6×4	6×4	6×4
Kerb Weight(kg)		8570	9850	12460
GVW (kg)		39000	41000	41000
Dimensions LxWxH(mm)		9945x2496x3080	10770x2496x3080	8545x2496x3080
Wheelbase(mm)		4600+1350	5225+1350	3800+1350
Cabin	Model	H77L(3 seats)	H77L(2 seats)	H77L(2 swats)
Engine	Model	MC07.34-30	MC11.39-30	MC11.43-30
	Displaceme nt	6.87	10.518	10.518
	Maximum torque (N • m/rpm)	1250N-m/1200-1800rpm	1900Nm/1000-1400rpm	2100N-m/1000-1400rpm
	Rated power(kW/rpm)	247kW/2300rpm	287kW/1900rpm	316kW/1900rpm
Transmission	Model	ZF9S1310 TO+PTO	ZF16S2230 TO+PTO	ZF16S2230 TO+PTO
Transmission	Gear position	9 forwards & 1 reverse	16 forwards & 2 reverses	16 forwards & 2 reverse
Front Axle	Load capacity(kg)	7000	9000	9000
Rear Axle	Load capacity(kg)	2X16000	2X16000	2X16000
Rear Axle	Ratio	4.42	4.42	5.26
Chassis	Think ness(mm)	8+5	8+5+8(partial)	8+8
Suspension	Type	Leaf springs	Leaf springs	Leaf springs
Fuel tank capacity	Volume(L)	400	400	300
Tire	Model	315/80R22.5	315/80R22.5	12.00R24

HOWO-N7 8X4 Chassis

Model		HOWO N712m3 Mixer	H0W0-N7 22-24m3 Dumper Truck
Drive type		8×4	8×4
Kerb Weight(kg)		14980	15000
GVW(kg)		50000	50000
Dimensions LxWxH(mm)		10983x2500x4080	9745x2500x3500
Wheelbase		1800+3200+1350	1800+3200+1350
Cabin	Model	H77L(with 1 bunk)	H77L(with 1 bunk)
Engine	Model	MC11.43-30 with PTO	MC11.43-30
	Displaceme nt	10.518	10.518
	Maximum torque (N • m/rpm)	2100Nm/1000-1400 rpm	2100N-m/1000-1400rpm
	Rated power(kW/rpm)	316kW/1900rpm	316kW/1900rpm
Transmission	Model	ZF16S2230 TO	ZF16S2230TO
Transmission	Gear position	16 forwards & 2 reverses	16 forwards & 2 reverses
Front Axle	Load capacity(kg)	2×9000	2×9000
Rear Axle	Load capacity(kg)	2×16000	2×16000
Rear Axle	Ratio	4.77	4.77
Chassis	Thinkness(mm)	8+8	8+8
Suspension	Type	Leaf springs	Leaf Springs
Fuel tank capacity	Volume(L)	400	400
Tire	Model	315/80R22.5	12.00R24
Mixer Drum	Mixing Volume(m3)	12(WaterLine)	Body type: U-type Lifting system: HYVA front lifting Body material: Hardox
	Hydraulic Pump	EATON6423-279 (America)
	Hydraulic Motor	EATON 6433-042 (America)
	Reducer	BONFIGLIOLI 580 (Italy)
	Type& Spec	Water tanker capacity: 1000L Mixer drum body: 5mm/ BW300TP Blade: 4mm/ B520JJ
