Dimension: 12500x2500x3260mm
Weight (KG): Max.70 tons
Axle: 2/3/4/5/6
King Pin: 90#
Landing Gear: JOST brand
Dimension: 12500x2500x3260mm
Weight (KG): Max.70 tons
Axle: 2/3/4/5/6
King Pin: 90#
Landing Gear: JOST brand

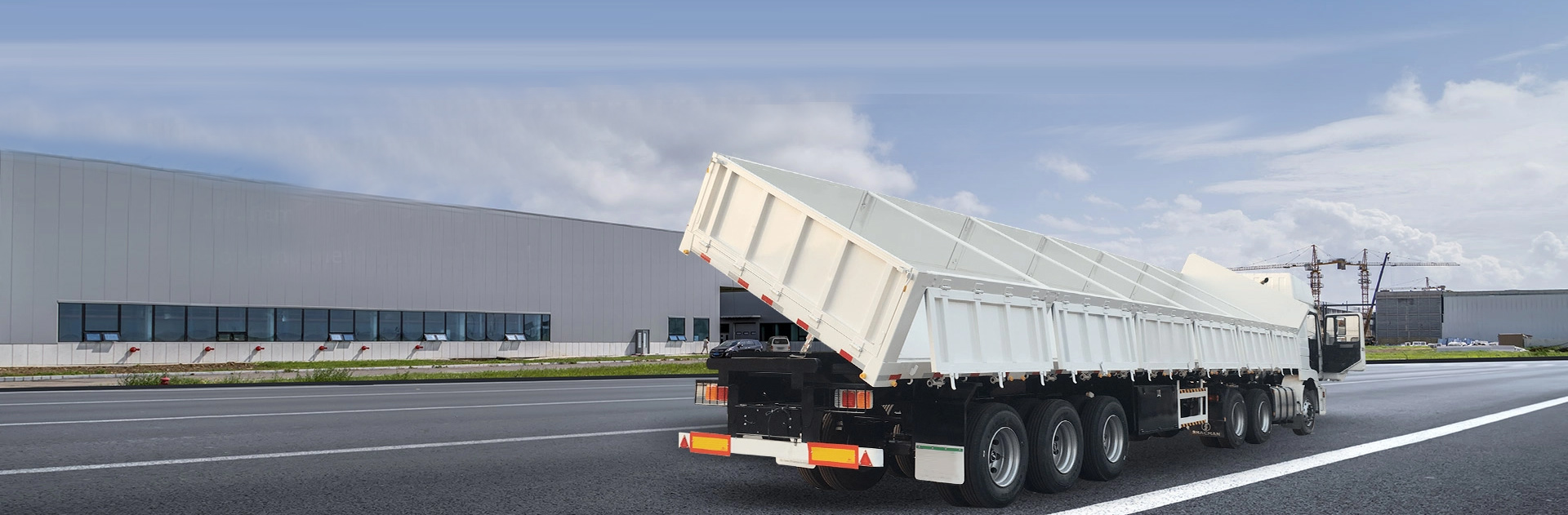

Ideal for transporting a wide range of cargo, including construction materials, machinery, and oversized loads, the SINOTRUCK Sidewall Semi Trailer Truck is built to handle the toughest tasks with ease.
Unmatched Load Capacity: Capable of carrying up to 60 tons, this trailer is designed for the heaviest loads.
Convenience and Flexibility: The drop side feature allows for quick and easy loading and unloading, enhancing operational efficiency.
Robust Construction: The heavy-duty frame is welded using automatic submerged-arc processes for extra durability.
| Product Name | 3 Axle Side Wall Semi Trailer | |
| Usage | Transport of Cargo Goods and Container | |
| Weight | Loading Weight | 60Ton |
| Overall Size | 12500x2500x2200mm | |
| Frame | Design/ Welding Technology |
Heavy Duty and Extra Durablity Designed; Welding by Automatic Submerged-Arc Processes |
| Main Beam | High Strength T700 Steel. Upper Plate Thickness is 14mm, Down Plate Thickness is 16mm, Middle Plate Thickness is 8mm. |
|
| Side Beam | 16#Channel Steel | |
| Platform Plate | 3mm Diamond Plate | |
| Parts | Axle | FUWA 3 Axle |
| King Pin | 2.0 or 3.5 Inch Bolts Type or Welding Type | |
| Suspension | Mechanical Suspension, Thickening | |
| Leaf Spring | Heavy Duty Standard Leaf Spring 90(W)mm×13(Thickness)mm×10(Layer) | |
| Laning Gear | Standard 28Ton | |
| Tire | 12R22.5 *12 Pieces | |
| Steel Rim | 9.00×22.5 *12 Pieces | |
| Brake System | Dual Line Braking System | |
| ABS | Without ABS(Optional) | |
| Electrical | 24V, 7 Pin Socket, One Set 7-Core Standard Cable (Rear and Tail Combination Lights, Side Marker Lights, License Plate Lights, Brake Lights) |
|
| Painting | Two Component Paint | |
| Spare Tire Frame | 2 Sets | |
| Tool Box | 1 Set(1×0.5×0.5M) | |
On-demand customization, please leave a message for consultation
