Automatic Grade: Automatic
Weight (KG): 25000kg
Chassis: Howo
Horsepower: 371/2200
Fuel Consumption(L/100km): 29
Automatic Grade: Automatic
Weight (KG): 25000kg
Chassis: Howo
Horsepower: 371/2200
Fuel Consumption(L/100km): 29
Intelligent Compression System: Features a sophisticated hydraulic system with a control valve, oil cylinder, and connecting pipeline, designed for reliable performance and ease of operation and maintenance.
Electronic Control System: Utilizes an imported PLC (Programmable Logic Controller) for integrated control with the option of manual operation.
Efficient Loading: The back pressure valve-equipped push plate control valve allows for two-way waste compression, automatically adjusting the garbage accommodation space for high loading efficiency.
Safety Monitoring: An optional rear monitoring system is available for comprehensive visibility during cab loading and unloading operations.
Emergency Braking: The garbage pressing mechanism can be stopped immediately in any state or position with the emergency brake button, prioritizing operator and equipment safety.
Customizable Collection Mechanisms: Offers various collection mechanisms to suit different waste collection requirements.

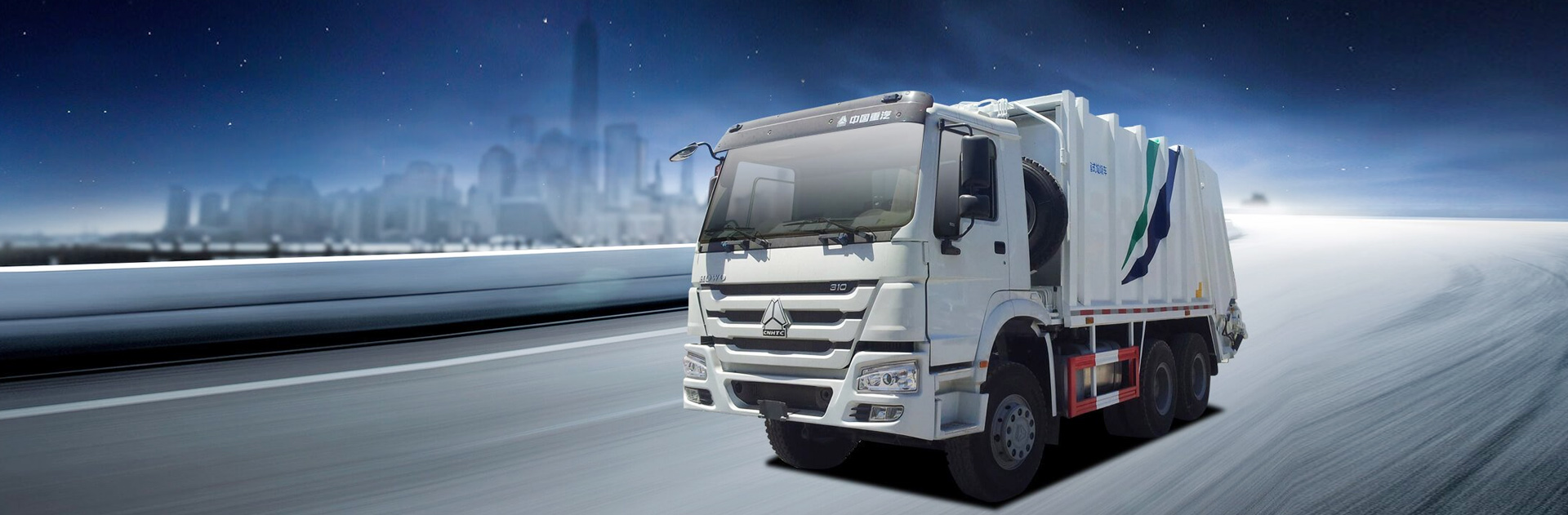

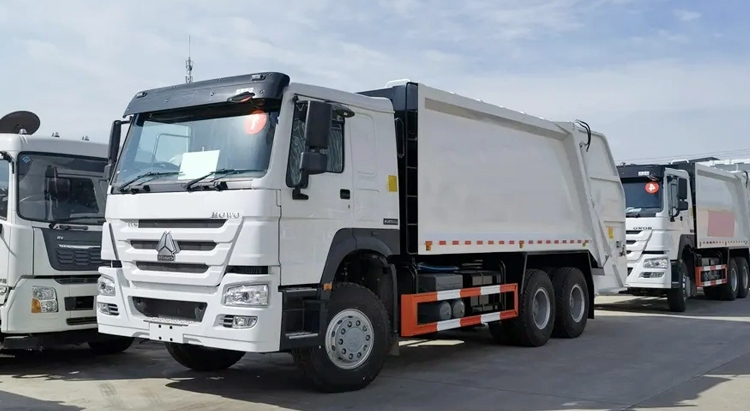

| HOWO Refuse Compactor Truck COMPACTOR | |
| Model Number | QDZ5251ZYSA |
| Chassis Number | ZZ1257N4341W |
| Driving type | 6*4 |
| Rated Loading Weight(kg) | 10000 |
| Kerb Weight(kg) | 15000 |
| Total Mass(kg) | 25000 |
| Overall dimesion(L*W*H)mm | 9980*2500*3650 |
| Min. Turning Circle (m) | 21.6 |
| Max. Speed (Km/h) | 90 |
| Fuel Consumption(L/100km) | 29 |
| Engine | SINOTRUK Brand,WD615.47,EURO-2 |
| Horse Power(hp/r/min) | 371/2200 |
| Volume of the Body(m3) | 18.5 |
| Volume of the Filler(m3) | 2.5 |
| Time of one Loading Cycle(s) | <25 |
| Time of one Unloading Cycle(s) | <40 |
| Max Brake Crase Pressure(kgf) | >35000 |
| Transmission | HW19710, 10 forward and 2 reverse |
| Clutch | Dia.430mm, Hydraulically operating with air assitance |
| Front Axle | HF7 |
| Rear Axle | ST16 |
| Steering | ZF8098 |
| Brake | Dual circuit compressed air service bake, spring energy parking brake, engine exhaust auxiliary brake, ABS for option |
| Tyre | 12.00R20 Radial tyre |
On-demand customization, please leave a message for consultation
